Scrambler Sixty2 Switching Lead

Scrambler Sixty2 Switching Lead

$14.95

x
SKU: aa-aa-f-PC-8r-sl-sixty2 Categories: , , , Tags: , , , , , ,

Description

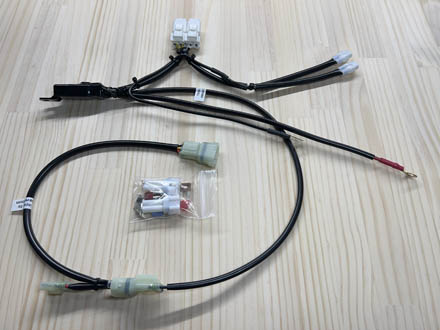

Connects to the tail light connector and allows for the stock tail light lead to be moved to the rear of the bike in front of the seat latch. Also allows connection to accessory fuse boxes or PDM;s. Comes with one male connector and seals/terminals so you can make a cable to your device.

Switching lead for external relay or PC-8R Fuse Box. Large sheath covers the OEM sheath for a waterproof seal. Connects to the black/red stripe cable on the right side of therear sub-frame brace.

Scrambler Sixty2 Installation Notes:

  1. Remove both the seat.
  2. Remove the battery cover/tray.
  3. Disconnect the battery negative and tape up the ring terminal so it does not touch the battery negative.
  4. Disconnect the battery positive
  5. Remove the tool kit tray ( there is a connector in front of it you will need to disconnect ). I believe there are 2 screws holding it in place.
  6. We lowered the under tray section, but if you can access the tail light connector at the back of the under tray, there is no need.
  7. Pop the 3 pin connector off its mount.
  8. Connect the 2CS male connector to the bike side female.
  9. Fold up the tail light cable towards  the rear of the bike and connect to the 2CS switching lead & the tail light connector.
  10. Connect the 2CS (+) lead to the battery.
  11. Connect the 2CS (-) lead to the battery.
  12. Locate the components as seen in the pictures below.
  13. Re install the tool kit holder and if you loosened the under tail, put the that back in place.
  14. Wire up your accessories.
  15. Install the fuses and test.
