Seals SSD 050
$0.18
7157-3950-80, 7157-3951-60
Description

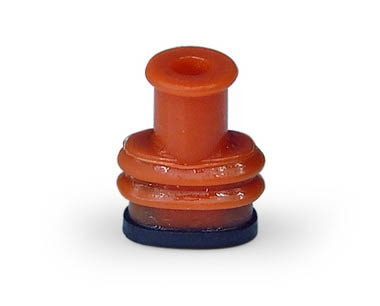

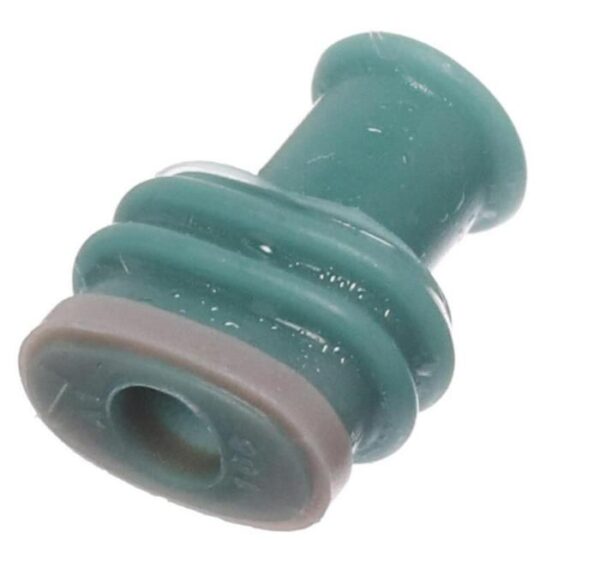

Yazaki SSD .050″ Series seals. 7157-3950-80 Brown ( Small ), 7157-3951-60 Green ( Large )
Now available with two sizes of seals:(S fits wire up to .5 sqmm – L fits wire up to .85 sqmm).
Terminals will fit wire up to .85 sqmm (18 AWG)
These seals have a hard plastic backing, small wire with thin insulation is recommended.
Reference Notes:
Allowable Current(Ref.): 5A(Ref)
Low Level Contact Resistance: 3milli ohm Max.(Initial)
Insulation Resistance: 100Megohm Min.(at 500VDC)
Withstanding Voltage: 1000V AC (1min.)
Temperature Range: -40 to 120deg.C
Additional information
| SIZE | Small – Brown ( 20AWG or 0.5mm² ), Large – Green ( 18AWG or 0.85mm² ) |
|---|
