Seals Sumitomo TS .025″
Price range: $0.08 through $0.10
7165-1199, 7165-1312, 7165-1043
Description
Seals Sumitomo TS .025″ seals. Originals made in Japan. Available in three sizes to suit the wire size used. Use the outside diameter of the insulation as the wire size to get a good seal. As these are silicon and quality seals, they can stretch to fit larger wires when needed. Bulk pricing available on application, for orders over 1000.

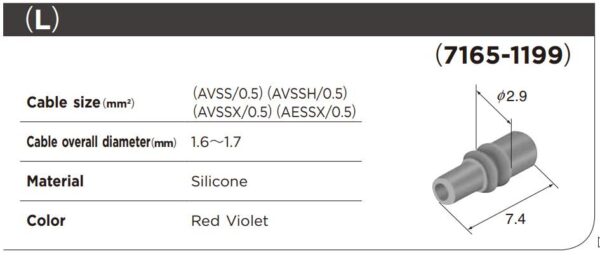

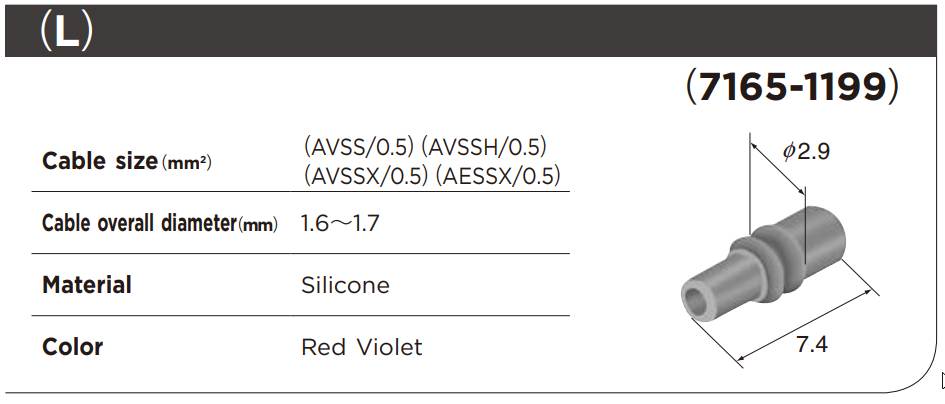

7165-1199 Reddish brown 1.4 – 1.5mm insulation diameter

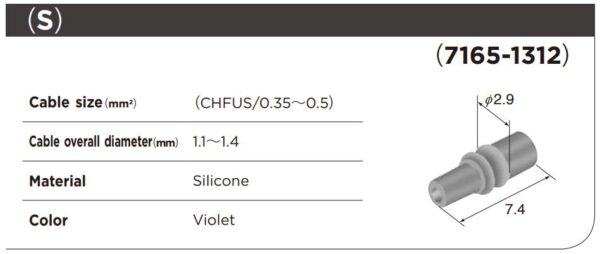

7165-1312 Violet 1.1 – 1.4mm insulation diameter

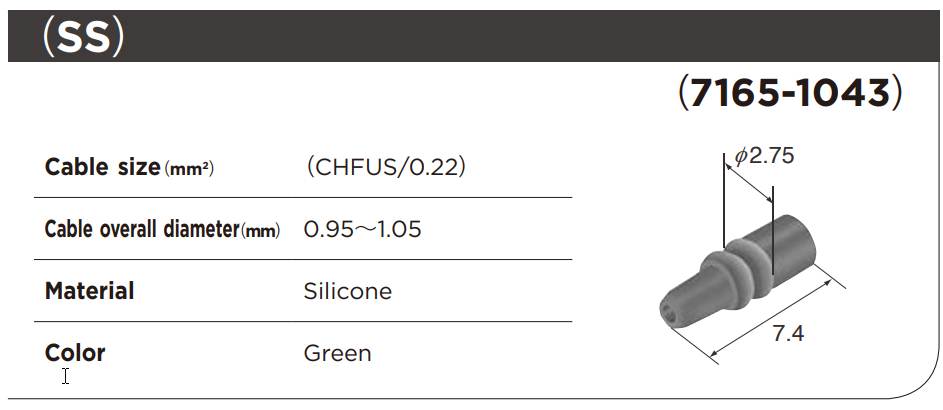

7165-1043 Green 0.95 – 1.05mm insulation diameter
NOTE: Sumitomo has a TS 025 Sealed Series AND a TS 025 Waterproof series. They both use
the same terminals and seals, so we’re not sure why they did this. Most likely a customer wanted
a not so common version.
Additional information

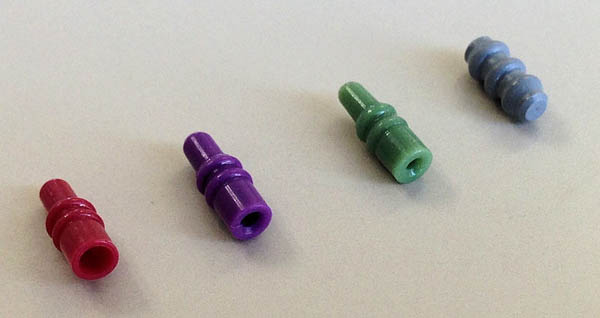

| SIZE | Large – Red, Medium – Violet, Small – Green, Plug – Grey |
|---|
