Suzuki DL650 VStrom Rectifier Adapter Cables – [2012-2017]
Price range: $29.95 through $34.95
Description

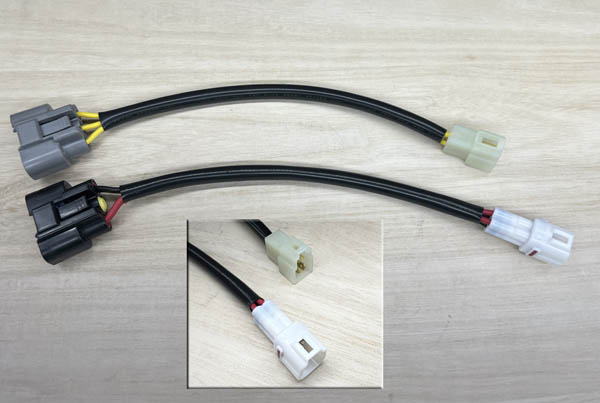

Suzuki DL650 2012-2016 rectifier adapter cables to FH0020AA MOSFET or SH847 rectifiers. These
cables will plug into your OEM harness and also the MOSFET Fh020AA or SH847 Shindengen
rectifiers. Very useful when upgrading your rectifier or MOSFET or Series rectifiers.

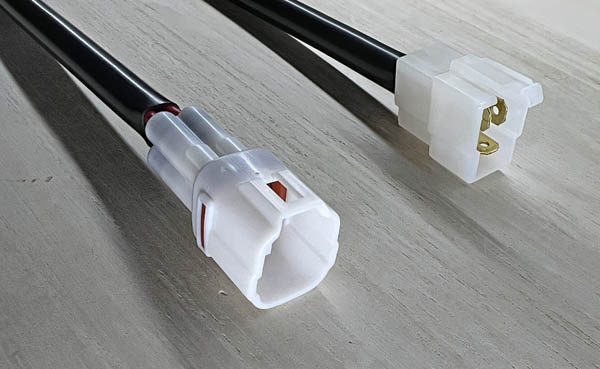

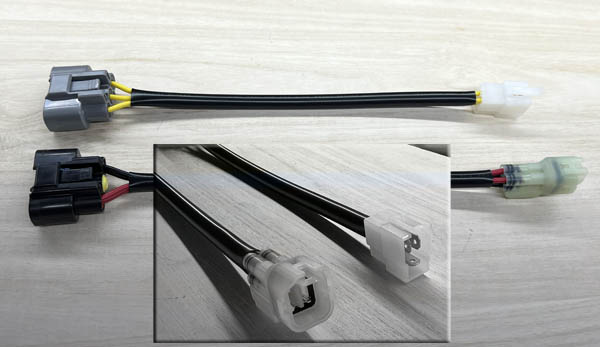

2004-2010 Use the HM 090 connector on the DC output. ( 32800-16G02-000 )
2011 only ( 32800-41G10-000 )
2012-2017 Use the MT 090 connector on the DC output. ( 32800-47H00-000 )
( based on part fiche information ).
Our cables are crimped where connectors are of decent capacity such as on the QLW
and 250 connectors & crimper & soldered on the 090 connectors. Out testing has
proven this is the best electrical connection and durable.
FH020AA and SH847 have different hole spacing, so a bracket is required. We will
have one available for 2012 to 2017 models shortly. We can do one for earlier models
if there is demand.
Additional information
| LENGTH | 12" ( 30.5cm ) Long, 24" (61cm) Long, 36" (91cm) Long |
|---|
