Description

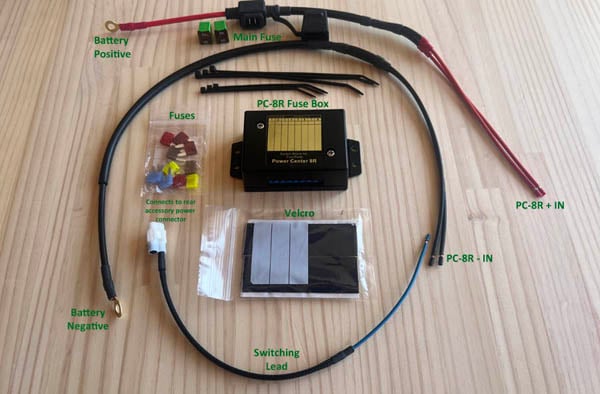

This is an electronic fuse box for the Yamah Tenere 700 models. It provides 6 switched and 2 unswitched outputs. Rated at 45A total
current. Switched outputs can be up to 30A and unswitched up to 15A ( 30A for short periods ). The kit is plug and play, no modifying
your OEM wiring. Trigger input lead included.

Operation is simple. If a circuit trips, it will remain off unit the bike ignition is cycled. A that time, it will check the output to see if the problem
still exists or has been fixed. If fixed, the unit will power up that output. If the original problem still exists, the unit will switch off that output.
The unit can handle short circuits on outputs, has thermal management built in and is very robust. Electronics are potted in thermally conductive
epoxy creating a waterproof and very durable product.

Outputs are as follows:
1 – Battey Direct @ 15A
2 – Switched @ 10A
3 – Switched @ 10A
4 – Switched @ 15A
5 – Battery Direct @ 15A
6 – Switched @ 5A
7 – Switched @ 5A
8 – Switched @ 15A

PowerLink: If Main Fuse Option is selected, then PowerLink Jumper leads cannot be used. PowerLink splitters and high power horn kits can be used.
Bullets: If ordered with Bullets on the Outputs, then mating Bullet connectors will be provided.
MT-090 Connectors: If ordered with MT-090 sealed connectors on the outputs, then mating MT-090 pigtails will be provided plus some 4mm bullet connectors.

Any CS Kit accessory can be used such as CS splitter cables.
