Terminals JWPF
Price range: $0.14 through $0.28
SWPR-001T-P025, SWPT-001T-P025
Description
JST JWPF terminals. These are extra terminals, as connectors come with the correct
number of terminals.
Fits wires from AWG #26 to AWG # 22 ( 0.13mm² to 0.33mm² ).
Reference Information:

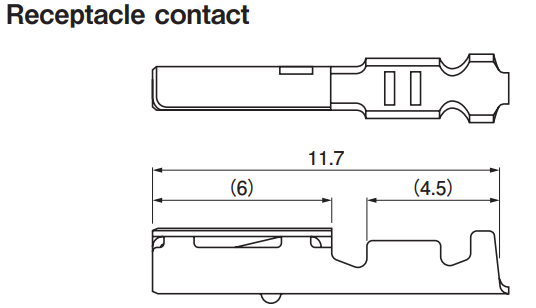

SWPR-001T-P025 female terminal,

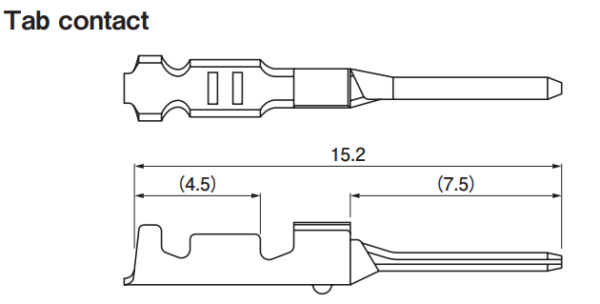

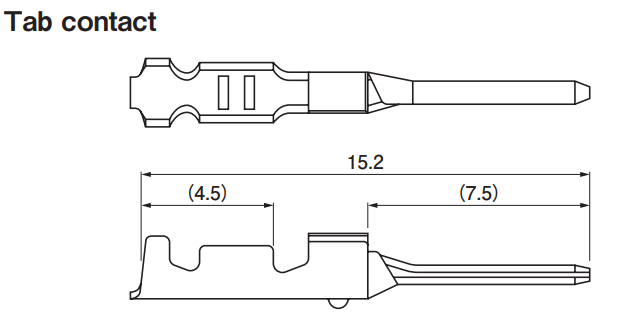

SWPT-001T-P025 male terminal
Current Rating: 3A AC/DC ( AWG #22 )
Voltage Rating: 100v AC/DC
Contact Resistance: 10mΩ ( max )
Insulation Resistance: 1,000 MΩ
Wire size: AWG #26 to AWG # 22 ( 0.13mm² to 0.33mm² )
IPX7 rating per IEC 60529 ( waterproof rating )
Additional information
| Type | Female, Male, Set |
|---|
