Transalp XL750 Aux Light Harness – [2025- ]. This relay harness take power from the front 2 Pin Acc power connector. It also includes a head light splitter cable and provides a low beam output and a high beam output, powered by the Acc power connector. Suitable for LED aux light. Built in relay. Current draw must be limited to under 7A. The Aux power connector has a 10A fuse, however, this fuse runs start to get quite hot at 8A and above and will blow at 10A. Fits 2025 model with LED headlight. The 3 pin output connector provides two outputs. You can connect to the low beam outputs OR the high beam outputs. This kit does not turn on both outputs at the same time. When the bike high beam is ON, the high beam outputs will be ON. When the bike LOW beam is active, the LOW outputs will be ON. If you have accessory LED lights with two inputs, you can connect both and have your accessory lights switch based on your head light switch position.

We will release a higher power kit, shortly.
LENTHS: 38.5cm From Relay to Light Outputs. 26cm from Relay to Aux Power Input.
Kit includes ( not shown ) male connectors, terminals and seals for the output connectors.
If the front Aux power connector is used, you will also need an Aux splitter. Also, most bikes need an Acc socket fuse sub harness for under the seat to route power to the front.

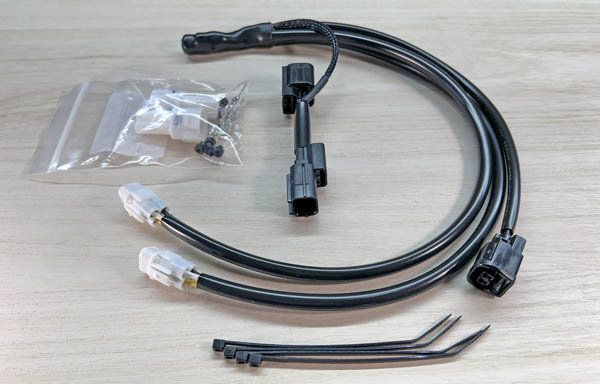

NOTE: Image shows 2024 model, switching lead is different for the 2025, which will be supplied.
