V-Strom Tail Light Splitter – [New DLs]

Price range: $24.95 through $28.95

Version 2 – brakelight wire has input (purple) and output (red) wires for BackOff type modulators. Tail light wire (blue) and ground (black) are take-offs from stock wires.

x
SKU: aa-aa-tail-breakout-new-dl-v1-v2 Categories: , , , , , , Tags: , , , ,

Description

These bikes have a pair of different connectors for rear lighting. One 3P sealed plugs directly into the tail light housing for the brake and tail lights. The other 4P connector is used for signals and license plate light. If you have a DL650 from 2012-16 please check your connector before ordering one of these.

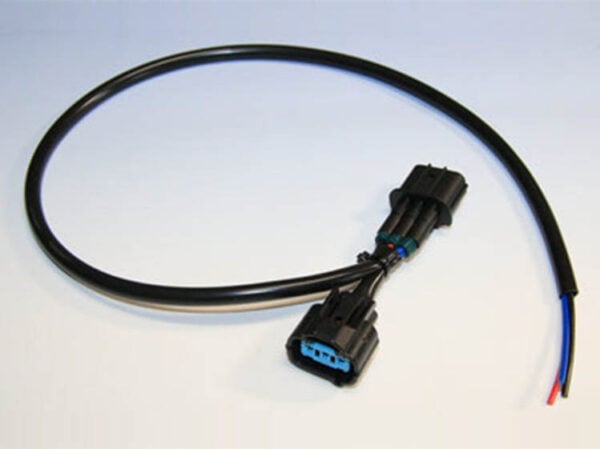

V1 – this is a break out cable providing access to the brake, tail and ground signals

Version 1 – all wires are take-offs from stock wires. Red wire is brake, blue wire is tail, and black is ground.

Version 2 – brakelight wire has input  (purple) and output (red) wires for BackOff type modulators. Tail light wire (blue) and ground (black) are take-offs from stock wires.

Additional information

TYPE

V1 Break Out Cable Only, V2 Break Out Cable with Modulator Support
