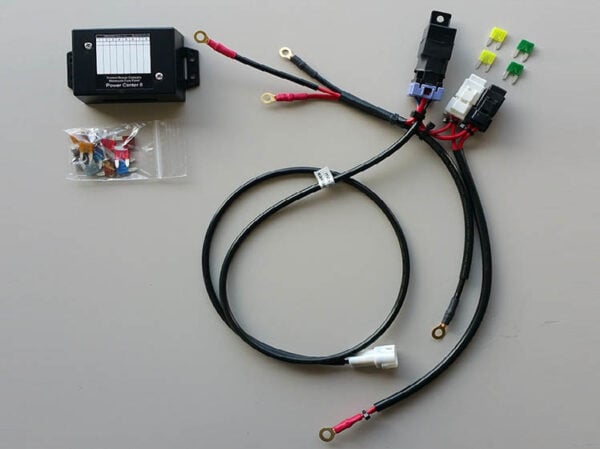

PC-8 Fusepanel Kit

This kit was developed for the new Tenere 700. This kit makes installation easy, mounting everything under the seat. A connector on the kit allows easy plug into the bike’s aux light connector for switching. A splitter is available to allow the stock aux lights to also plug into this connection. This special edition of the PC-8 Kit includes everything you will need to install on your T700.

This superb fuse panel is full of all the features every rider has ever wanted and more! Easy to install, well protected, and with 8 mini fuses, one on each output circuit. Includes 8 output grounds too. Kit is made from highest quality high temp wire and sheathing. Just strip your circuit wires and insert into the PC-8 outputs and tighten the screws. Both power and ground terminal blocks are built in.

Read more about the PC-8 and it’s features here.

This is a 30” Kit with plug and play switching adapter using the stock Aux. Lights Connector. The Aux. Lights connector is close to the battery and perfect for switching a Fuse Panel’s relay. Of course you can hookup any Auxiliary Lighting directly to the PC-8. If you already have aux lights using the stock connector, you will need to also buy our Aux Light Splitter.

The Powerlink option – allows quick disconnection of the PC-8 Kit for jump starting your bike or another bike from yours, or using a splitter you can hookup the PC-8 and another high current device like a high powered horn. Read all about the Powerlink System and it’s features here.

This Kit is now 50A capable using dual main fuseholders.

PC-8 Specifications and Features:

– 4 threaded insert nuts provide case mounting and fuse panel installation mounting points

– comes with an assortment of ATM fuses, one for each output circuit and a few extras

– 8 hot + outputs (2 unswitched circuits, 6 switched circuits)

– Switched circuits are turned off when the bike is shut down. An unswitched circuit is always hot – can be used for charging the battery

– 8 ground outputs – much better to ground your auxiliary circuits here than on a bike’s frame

– maximum fuse panel capacity 60 Amps (40A/20A – switched/unswitched)

– maximum circuit capacity 20 Amps (15A continuous)

– maximum output wire size 12 AWG (3 sqmm)

– all hardware is stainless steel (except input posts which are tin plated steel)

– black satin polycarbonate cover makes unit splash-proof yet allows it to breathe and stay cool

– cover mounting tabs on each end can be broken off or left on, depending on mounting choice

– simple robust design means no overheating and no problems with vibration

– I designed this fuse panel with ease of mounting a priority. Therefore there are many mounting options: Dual Lock on back of case, fine threaded screws from back of panel, self tapping screws from inside through PCB inserts to panel, or nuts and screws on the case mounting ears at each end of the case.
