Automotive Relays
Table of Contents
Panasonic Sealed Relays
Quality sealed automotive relay from Panasonic.
Relay – 40A Panasonic
These are 4 blade normally open ( NO ) heavy duty relays. High temperature resistant housing. 40Amp rated at 12v.
You can use .250″ tang-less terminals on the 20A and 40A relays if connector space is an issue.

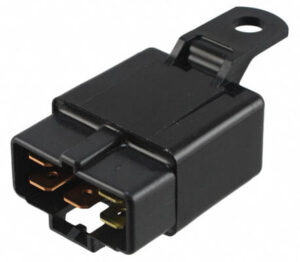

Relay – 20A Panasonic With Tab – [NO]
20A Sealed Panasonic relay. Automotive grade relay. 12v . Normally Open configuration. Uses 1.4watts.
You can use .250″ tang-less terminals on the 20A and 40A relays if connector space is an issue.
Relay – 20A Panasonic Without Tab – [NO]
20A Sealed Panasonic relay. Automotive grade relay. 12v . Normally Open configuration. Uses 1.4watts.
You can use .250″ tang-less terminals on the 20A and 40A relays if connector space is an issue.
Relay – 20A Panasonic Without Tab – [NC]
Normally Closed Type Relay. 20A rating. Made by Panasonic.1.4w power draw. 100 ohm coil. 19g weight. You can use .250″ tang-less terminals on the 20A and 40A relays if connector space is an issue.
NOTE: Quality NC relays are hard to find as not used so often in designs.
Relay – 35A ISO by Panasonic – [NO]
ISO format relay. 35A rating. Fits ISO sockets with this pin configuration. Uses .250″ and .187″ terminals ( contact terminals are a larger size ( copper terminals )). Used on some NC750 & NC700 Honda Motorcycles.
Uses .250″ tang-less for the contacts and .187″ tang-less terminals for the coil connection.
