Suzuki GSX1000F 4CS Fuse Box Kit

This kit was developed for the 2018 GSX1000F, other models should be similar. Please contact us if you have a similar model. We would love to know all models this Kit will fit. This Kit uses the heated grip connector to switch its relay. With a passthrough you can still use the connector for heated grips or other purposes. These bikes have limited area to mount a fuse panel, but this kit makes installation easy.

3 Switched and 1 un-switched outputs.

$64.95

Connection Option

Clear

Crimper for sealed connector terminals:

The Hozan P-706 does a pro job on these types, go here to buy. This is a great tool for a home shop, most connectors on modern bikes are this type.

You don’t need a crimper to install these. You can pinch and solder if you know how to solder. I have a page about crimping and soldering here.

CS Sealed Leads and Extensions

Various pre-finished leads of the highest quality are available for running your circuit wires from the CS Kit under the seat to up front to power a socket, SAE, aux lights, or other devices. Leads are available for a variety of power socket connections to plug in directly. Extensions can be used where you install the male connectors that come with the CS Kit on the wires of your device (like an automotive socket with pigtails), everything then plugs together. Wires, connectors, and sheathing are high temp, highest quality, Japan made by Eastern Beaver.

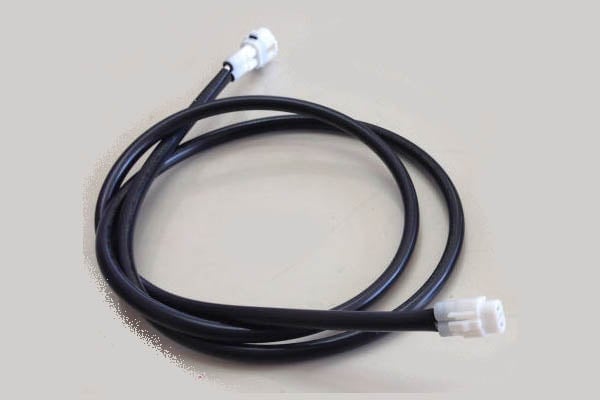

CS Kit Extensions

male connector on one end and a female on the other end, male plugs into a CS Kit output connector – then you can use one of the included (comes with every CS Kit) male connectors on your accessory wires to complete the circuit – give you a modular way to connect your circuits

LENGTH

Clear

CS Kit Leads - these leads have specific terminating connectors for different accessories

CS Kit Leads with SAE Plug

2 Prong SAE Plug for battery chargers, etc., WITH 16 AWG wire. (NOW WITH SAE CAP)

CS Kit Leads Sealed (SAE)

LENGTH

Clear

CS Kit Leads with T-Connector

2 Prong T-Connector for Powerlet and Hella type Socket – with 18 AWG wire

LENGTH

Clear

CS Kit Leads with .250″ Spade Connector

2 1/4” Sheathed Push-on Receptacles for Automotive Sockets etc. – with 18 AWG wire

CS Kit Leads Sealed (.250”)

LENGTH

Clear

CS Kit Sealed Splitter

These splitters are designed to allow you to power even more accessories from your CS Kit.

All splitters are 15 cm(6”) long.

$19.95

Output 1

Output 2

Clear

New Suzuki Rear Lighting Adapters - same as newest VStrom models

New DLs Brake/Tail Adapter

This also fits the GSX1000 2018 and may fit other years.

Version 1 – all wires are take-offs from stock wires. Red wire is brake, blue wire is tail, and black is ground.

Version 2 – brakelight wire has input (purple) and output (red) wires for BackOff type modulators. Tail light wire (blue) and ground (black) are take-offs from stock wires.

Version

Clear

New DLs Signal/Licence Adapter

Also fits the 2018 GSX1000. May fit other year GSX1000.

Signal wires (2), licence light wire, and ground wire are take-offs from stock wires. Yellow and white wires are signals, purple wire is licence light, and black wire is ground.

$16.95

Suzuki V-Strom Heated Grip Adaptor

This adaptor features factory crimped terminals, high temp 16 AWG leads, and high temp sheathing.

Sumitube shrinktube sealed on the connector to keep out moisture and provide wire strain relief.

$12.95

VStrom Factory Heated Grips to Fuse Panel Adapter

The factory heated grip connector is not the best place to supply power to heated grips. And if you have a fuse panel and the factory Heated Grips, you’ll likely want to connect the factory heated grips to your fuse panel. This adaptor will allow you to do that and get full power to the grips, without having to cut and splice any wires, and avoids placing any extra load on the factory wiring.
