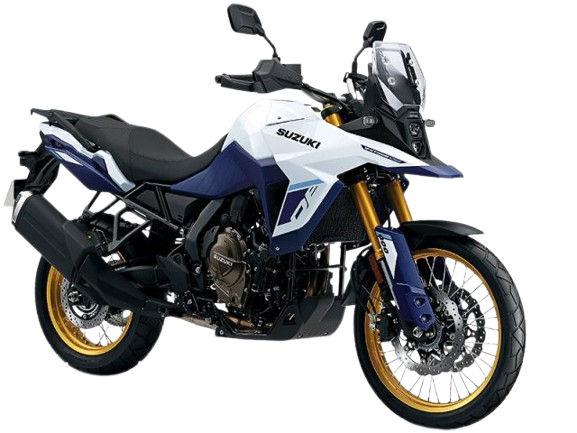

Suzuki V-Strom 800DE & 800RE Electrical Accessories
Table of Contents
Suzuki V-Strom 800 PC-8R Kit
Compact switched power source for the 701 Enduro. Provides 2 outputs. Sealed and tough construction. Under seat space is tight and this kit fits perfectly. Plug and play easy intallation.
Suzuki V-Strom 800DE & 800RE Rear Aux Power Break-Out
Rear aux power splitter with break out to bullets. Even if you have an existing device connected, you can use the break out cable to power another device or as a trigger for an accessory fuse box.
Suzuki V-Strom 800DE & 800RE Rear Aux Power Splitter
Rear aux power splitter with break out to bullets. Even if you have an existing device connected, you can use the break out cable to power another device or as a trigger for an accessory fuse box.
FuseBox Installation Notes
Super clean installation by a customer. You can see the PC-8R mounted under the pillion seat. The power wires run towards the battery on the right side of the subframe. The main fuse sits just behind the battery to the right. Switching lead is behind the PC-8R to the rear of the bike. 3 connections ( battery and switching lead ) and done.
The PC-8R or other Eastern Beaver fuse box will plug into the 2 pin connector with the blue/white wire, found just behind the passenger seat under the rear cowl ( near the tail light ). It usually has a cap on it, which you remove.
