V-Strom DL1000 And DL650 Accessory Cables
For all older V-Strom’s, DL1000 to 2013 and DL650 to 2016
Table of Contents
Accessory Cables
Suzuki V-Strom Heated Grip Adaptor

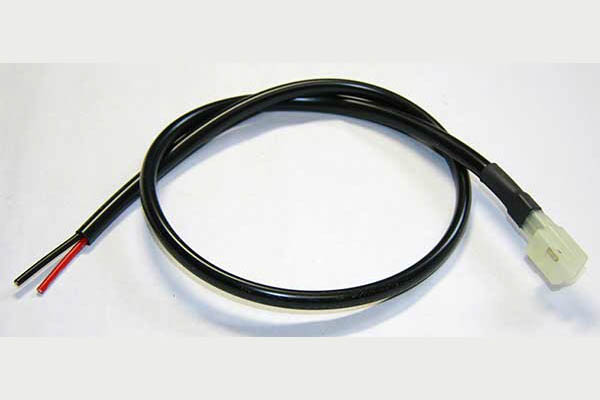

Connects to the factory heated grip connector ( part of the bike wiring loom ). Use for heated grips or other low current accessories. The Factory Heated Grip Connector – is found behind the left side of the radiator.
Suzuki V-Strom PC-8, PC-8R to Factory Heated Grips

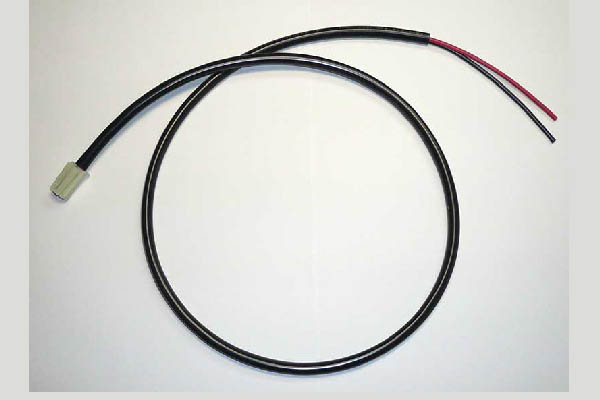

PC-8 & PC-8R to factory heated grip adapter. If your front OEM connector is in use, you can add this to your PC-8 or PC-8R to add another heated grip connection. It’s switched power so can be used for other devices also.
Suzuki DL650 Accessory Adapter Cable – [2012-2017]

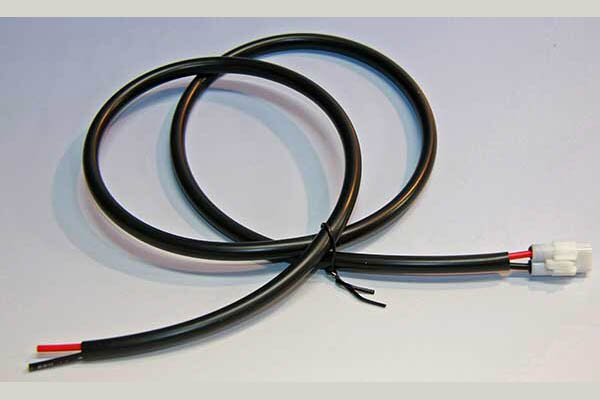

This plugs into a factory connector which is found just under the dash/fairing edge at the front right.
DL650 V-Strom 2012-2017 only.
V-Strom Brake, Tail, Signal Break-Out Cable – [Version 1]

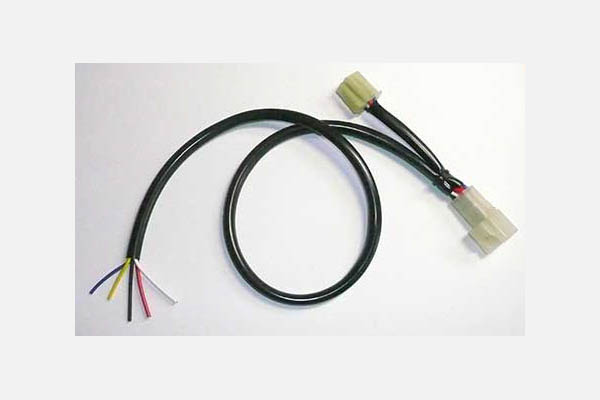

Version 1 – has one wire for each wire in the VStrom’s rear connector. This provides ground, brake light, tail light, and signal lights connection ability. Hyper-Lites flashing LED brakelights can use this adaptor.
Red – Brake
White – tail
Yellow- signal left
Blue – signal right
Black – ground
V-Strom Brake, Tail, Signal Break-Out Cable – [Version 2]

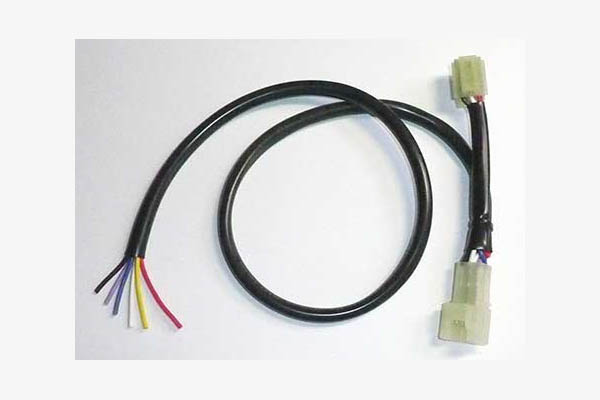

Version 2 – is for using a Brake Light Modulator like the Backoff XP, where the modulator goes inline. In this version the tail, signal and ground wires are simply wires joined to the VStrom’s rear wires. The brake light has two wires: red is input, purple is output.
Red – Brake Out
Purple – Brake Out
White – Tail light
Yellow- Signal Left
Blue – Signal Right
Black – Ground
Suzuki V-Strom Handlebar Wiring Extensions

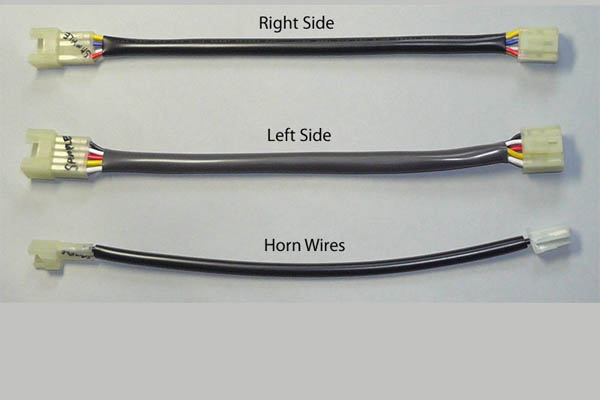

Handle bar extension cables for the DL1000. DL650 2012 on uses a different horn cable ( 4 pin ). Some very early V-Strom DL1000’s use a 6P right side cable. Please verify what you need BEDORE ordering.
V-Strom DL650 Left Handlebar Extensions -[2012-]
2012 on DL650s are using this INSTEAD of the Horn Extension. These bikes also use the Left and Right Bar Extensions. The new DL1000A is unknown if it’s changed, or like the 2012 on DL650s. Check yours if unsure.

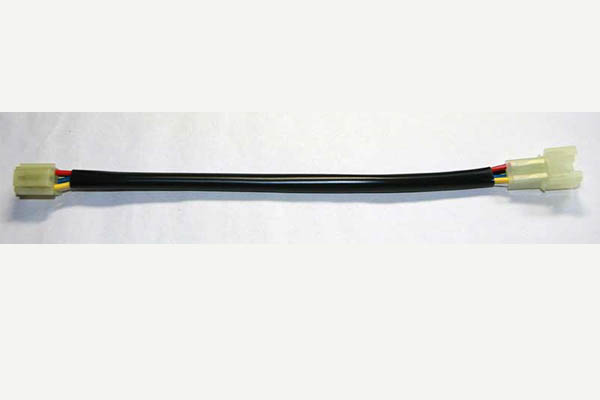

V-Strom Right 6P Handlebar Wiring Extension – [Early Models]
Early VStroms up until about 2004/5 have a 6 position connector on the RIGHT side rather than the standard 8 position connector of later bikes. They also might not have the extra 2P Horn Connector on the left side. If you have an early VStrom, please check if yours has the 6 position connector before ordering.
Suzuki DL650 Vstrom Rectifier Adapter Cables – [2004-2010]
Suzuki DL650 2004-2009 rectifier adapter cables to FH0020AA Mosfet or Series SH847 rectifiers. These
cables will plug into your OEM harness. Very useful when upgrading your rectifier to MOSFET or SERIES rectifiers.

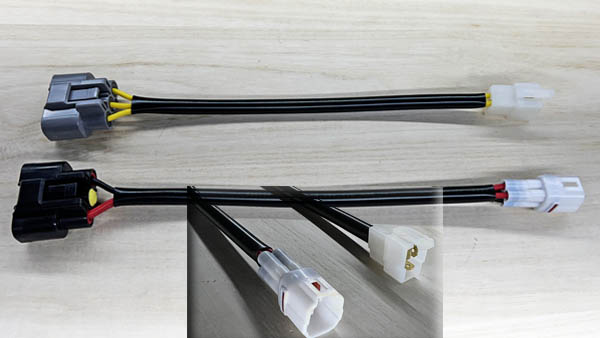

Suzuki DL650 V-Strom Rectifier Adapter Cables – [2012-2017]
Suzuki DL650 2010-2014 rectifier adapter cables to FH0020AA Mosfet or Series SH847 rectifiers. These
cables will plug into your OEM harness. Very useful when upgrading your rectifier to MOSFET or SERIES rectifiers.
