Yamaha WR250R 3 Circuit Solution – [3CS]

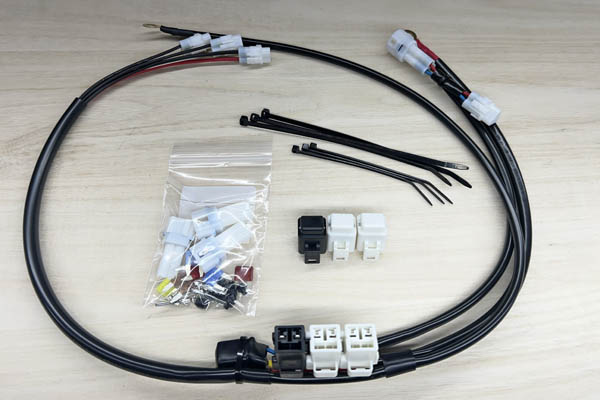

Yamaha WR250R 3 circuit solution fuse box. This kit offers 2 switched and one battery direct connection.
You can expand its outputs by using CS splitter cables. This kit is plug and play, with no modifying your
bike wiring harness and no tapping into leads.
The kit is rated at 25A total current with 20A max on switched and 15A max on battery direct ( combined
at any one time the total should be 25A or under ).
The relay and outputs are sealed. This kit uses the tail light connector which is a 3 pin MT 090 connector
that runs along the frame, just above the battery. The relay and fuses are to be routed to the rear left of the
bike and the output towards the front, to the left of the airbox, just before the back of the tank.
Temporary picture shown.
WR250R Tail Light Break out Cable
WR250R tail light break out cable. Provides a source of switch power. Also access to the brake light signal, for
extra brake lights. Recommended to keep current draw at 1A or less, and use a relay if you need to draw more current.
The cable is a female to male MT 090 with a 3 wire pigtail on the other end.
You can buy extra connectors on this page HM 090
