10 Pin TS .025″ Sealed Connectors
Price range: $4.14 through $8.80
6189-1134, 6188-0696
Description

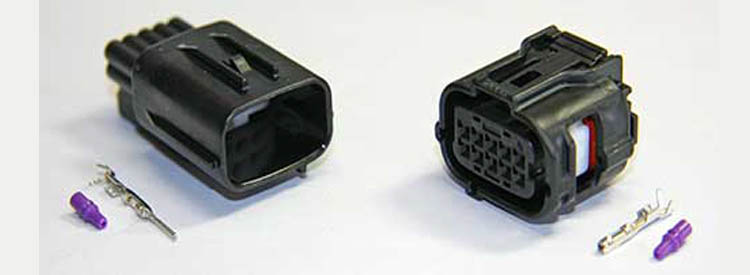

10 Pin Sumitomo TS .025″ ( 0.64mm ) connectors. Includes seals and terminals, extra available separately.
Available as female, make or set.

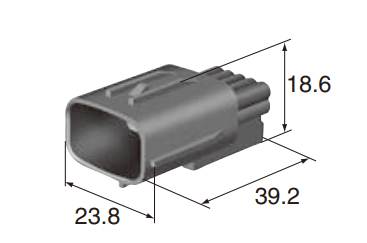

6188-0696 Male 10 Pin

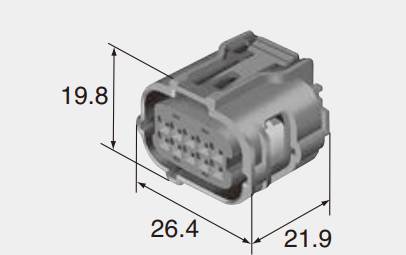

6189-1134 Female 10 Pin
8100-3617 Male Terminals
8100-3455 Female Terminals
7165-1312 Seal Large Applicable wire size 0.35-0.5mm²
7165-0796 Seal Medium Applicable wire size 0.3mm²
7165-0891 Seal Small Applicable wire size <0.3mm²
NOTE: Sumitomo has a TS 025 Sealed Series AND a TS 025 Waterproof series. They both use
the same terminals and seals, so we’re not sure why they did this. Most likely a customer wanted
a not so common version.
Additional information
| TYPE | 10 Pin Female, 10 Pin Male, 10 Pin Set |
|---|---|
| SIZE | Large, Medium, Small |
