13 Pin TS .025″ Sealed Connectors
Price range: $4.59 through $9.80
6189-1092, 6188-4914
Description

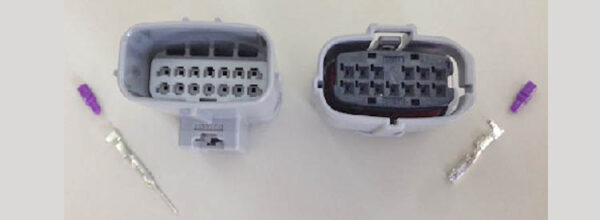

13 Pin TS .025″ Sealed Connectors ( 0.64mm ). Includes seals and terminals, extra available separately.
Available as female, make or set.
6188-4914 Male 13 Pin

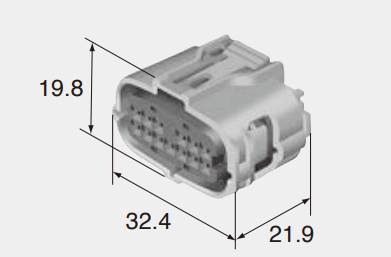

6189-1092 Female 13 Pin

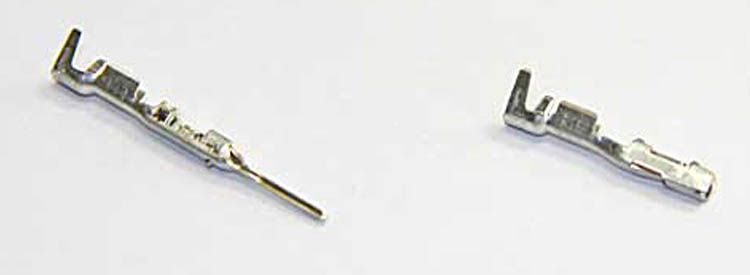

8100-3617 Male Terminals
8100-3455 Female Terminals
7165-1312 Seal Large Applicable wire size 0.35-0.5mm²
7165-0796 Seal Medium Applicable wire size 0.3mm²
7165-0891 Seal Small Applicable wire size <0.3mm²
NOTE: Sumitomo has a TS 025 Sealed Series AND a TS 025 Waterproof series. They both use
the same terminals and seals, so we’re not sure why they did this. Most likely a customer wanted
a not so common version.
Additional information
| TYPE | 13 Pin Female, 13 Pin Male, 13 Pin Set |
|---|---|
| SIZE | Large, Medium, Small |
