3 Pin JWPF Sealed Connector
Price range: $1.37 through $3.65
03R-JWPF-VSLE-S, 03T-JWPF-VSLE-S
Description
3 Position JWPF Sealed Connector
Fits wires from AWG #26 to AWG # 22 ( 0.13mm² to 0.33mm² ).
Comes with terminals and seal is included in the connector ( in the back of the connectors ).
To install, run the wires though the connector from the rear. Strip about 3mm – 4mm ( 1/8″ ) and crimp the terminal to the wire.
The outer crimp sections should crimp the insulation ( just enough to hold it not to crush it ) and
the inner crimp position crimps the wire. See below image.
Reference Information:

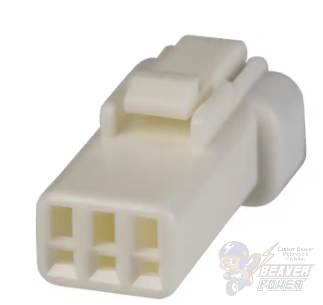

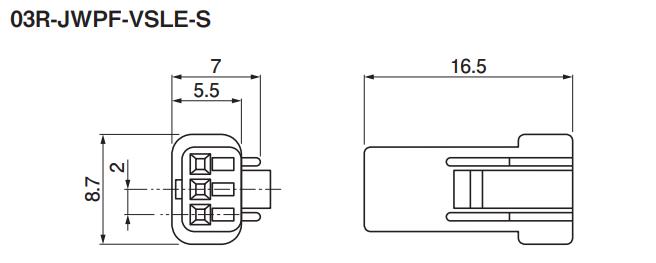

03R-JWPF-VSLE-S Female Connector ( receptacle )

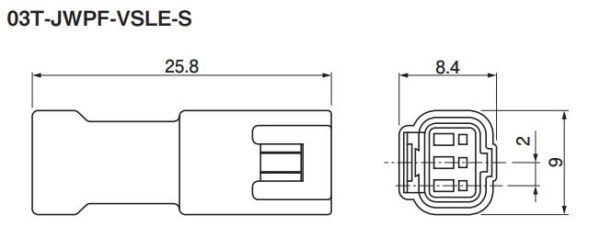

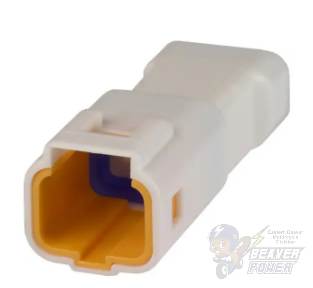

03T-JWPF-VSLE-S Male Connector ( tab )
Current Rating: 3A AC/DC ( AWG #22 )
Voltage Rating: 100v AC/DC
Contact Resistance: 10mΩ ( max )
Insulation Resistance: 1,000 MΩ
Wire size: AWG #26 to AWG # 22 ( 0.13mm² to 0.33mm² )
IPX7 rating per IEC 60529 ( waterproof rating )
