Terminals SSD 050
Price range: $0.12 through $0.24
7114-1680-08, 7114-1680-02
Description
Yazaki SSD .050″ ( 1.3mm ) Series Terminals. Fits wire up to 0.85sqmm ( approx. 18AWG )

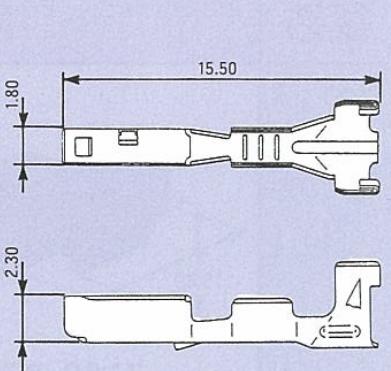

7114-1680-08 Female
7114-1680-02 Male
Reference Notes:
Allowable Current(Ref.):Â Â 5A(Ref)
Low Level Contact Resistance:Â Â Â 3milli ohm Max.(Initial)
Insulation Resistance:Â Â Â 100Megohm Min.(at 500VDC)
Withstanding Voltage:Â Â Â 1000V AC (1min.)
Temperature Range:Â Â Â -40 to 120deg.C
Additional information
| Type | Female, Male, Set |
|---|
