4 Pin 62-Z 060 Sealed Connector
Price range: $2.79 through $6.60
7123-7740-40, 7222-7740-40
Description
4 Position Waterproof Connector.
Fits wires from .5mm – .85mm (22 – 18 AWG).
Retainers lock terminals in place.

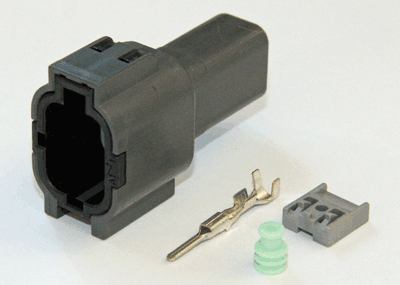

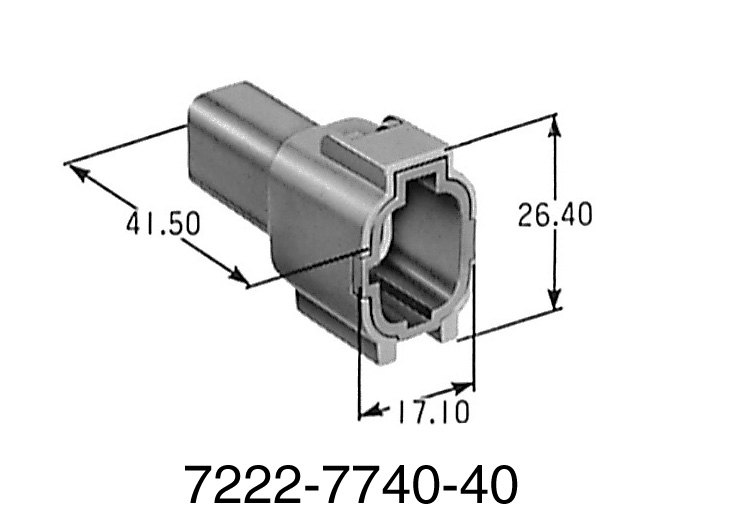

7222-7740-40 4P Male Connector

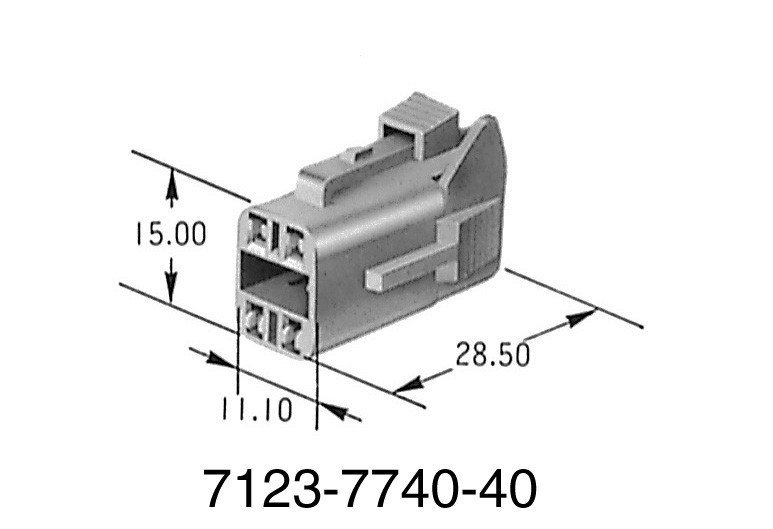

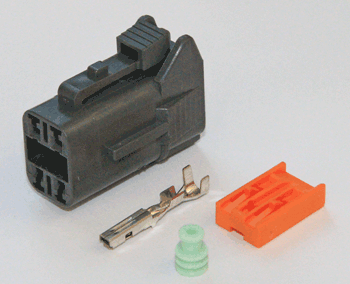

7123-7740-40 4P Female Connector
Terminals rated at 6A
Electrical Resistance: 5milli ohm Max.(Initial)
Insulation Resistance: 250Megohm Min.(at 500VDC)
Withstand Voltage: 1000V AC (1min.)
Additional information
| TYPE | 4 Pin Female, 4 Pin Male, 4 Pin Set |
|---|
