Description

4 Circuit Solution Sealed Kit

This Kit is for power needs up to 40A total current, split between 4 outputs ( 2 switched and two un-switched ) on the Kit. You can split the outputs further with our CS splitter cables to achieve more outputs, for lower current devices ( lower section of this page .

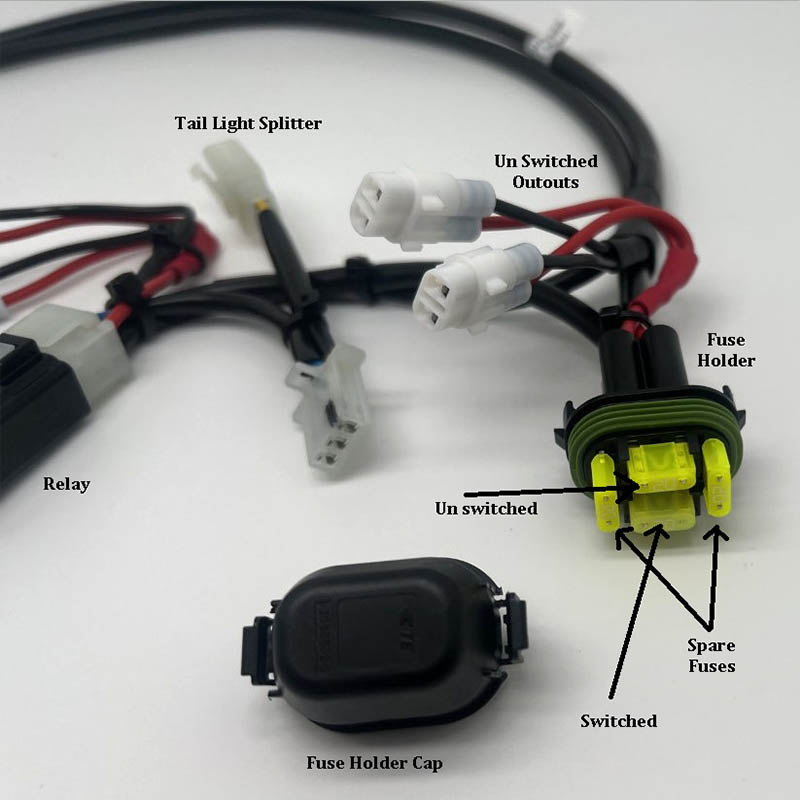

This Kit has two main fuses. You can charge the battery through the un-switched circuit which is always hot. The switched circuits are switched by the relay to be on only when the bike is on.

Two switched outputs are provided, controlled by a 20A relay and a main fuse holder of 20A max. Switched outputs are max 10A each. These switched outputs are great for most of your accessories, mobilel phone, GPS etc, even heated clothing can be powered.

Two un-switched output are provided direct from battery using its own fuse, with max capacity of 10A each or 20A on one, if only one circuit used. The bike battery can be charged with this circuit.

The relay is a very compact 20A unit with extra protection shrunk over it. Mating connectors and fuses are included. Extra connectors and parts are available on the Accessories Page.

Leads, extensions, and splitters to plug into the 3CS Sealed are now available on the Accessories Page.

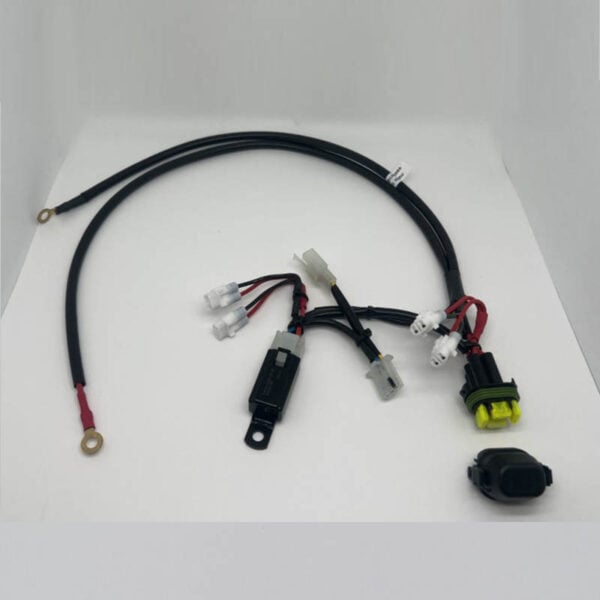

Kit with Battery Connections (also available to hookup to our Powerlink battery leads)

Installation Note: This kit uses the tail light connector at the rear of the bike under the passenger seat. The kit is designed to be installed under the passenger seat. The relay and fuse holders on one side and the PC-8 on the other ( left side when seated on the bike )  You may need to move anything you have stowed there as the kit takes up most of the under seat space.
