Royal Enfield Himalayan 411 PC-8 Kit

Royal Enfield Himalayan 411 PC-8 Kit

$104.95

Installation Note: This kit uses the tail light connector at the rear of the bike under the passenger seat. The kit is designed to be installed under the passenger seat. The relay and fuse holders on one side and the PC-8 on the other ( left side when seated on the bike )  You may need to move anything you have stowed there as the kit takes up most of the under seat space.

SKU: aa-aa-PC-8-F-himalayan-40A Categories: , , , , , Tags: , , , , , , , , , Brand:

Description

Royal Enfield Himalayan 411 PC-8 Kit Battery Connect Complete Kit

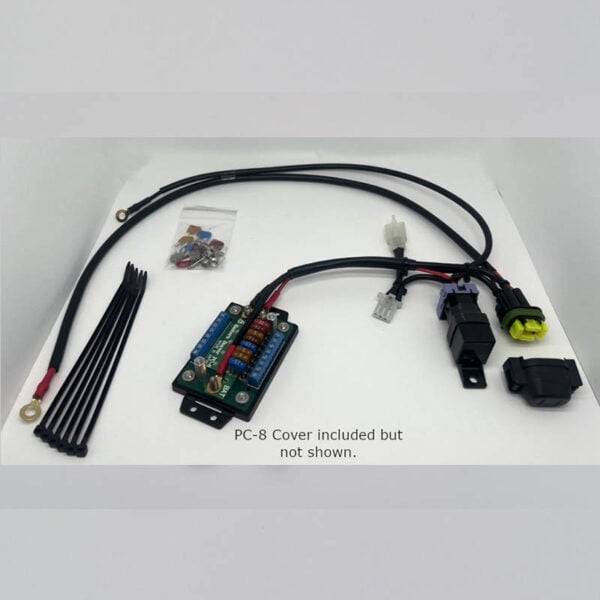

Complete plug and play kits, with all the wiring, a 40A relay, fuses, a PC-8 fuse panel, and more.

Specifications and Features:

  1. 4 threaded insert nuts provide case mounting and fuse panel installation mounting points
    comes with an assortment of ATM fuses, one for each output circuit and a few extras.
  2. 8 hot + outputs (2 unswitched circuits, 6 switched circuits)
    Switched circuits are turned off when the bike is shut down. An unswitched circuit is always hot – can be used for charging the battery.
  3. 8 ground outputs – much better to ground your auxiliary circuits here than on a bike’s frame.
  4. maximum fuse panel capacity 60 Amps (40A/20A – switched/unswitched).
  5. maximum circuit capacity 20 Amps (15A continuous).
  6. maximum output wire size 12 AWG (3 sqmm).
  7. all hardware is stainless steel (except input posts which are tin plated steel).
  8. black satin polycarbonate cover makes unit splash-proof yet allows it to breathe and stay cool.
  9. cover mounting tabs on each end can be broken off or left on, depending on mounting choice.
  10. simple robust design means no overheating and no problems with vibration
