6 Pin 62-Z 060 Sealed Connector
Price range: $3.29 through $8.40
7123-7760-40, 7222-7760-40
Description
6 Position Waterproof Connector. Includes terminals ( pins ) seals and retainer.
Fits wires from .5mm – .85mm (22 – 18 AWG).
Retainers lock terminals in place.

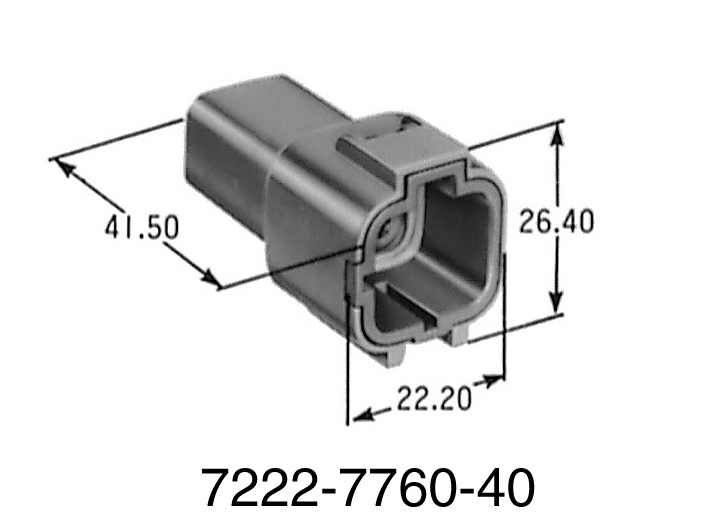

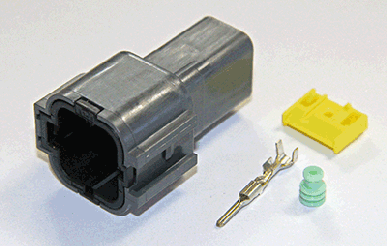

7222-7760-40 6P Male Connector

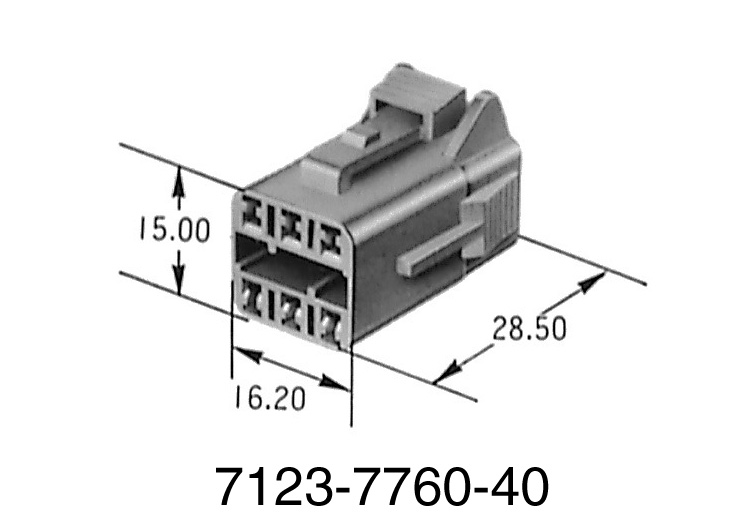

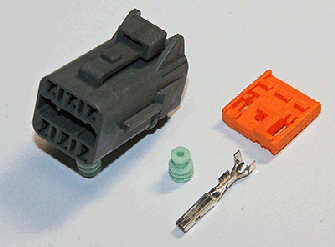

7123-7760-40 6P Female Connector
Terminals rated at 6A
Electrical Resistance: 5milli ohm Max.(Initial)
Insulation Resistance: 250Megohm Min.(at 500VDC)
Withstand Voltage: 1000V AC (1min.)
Male Terminal 7114-1305
Female Terminal 7116-1305
Seal 7157–3791–60
Additional information
| TYPE | 6 Pin Female, 6 Pin Male, 6 Pin Set |
|---|
