Description

There are quite a few options on this kit as follows;
Length –  standard mounts under the riders seat. Long mounts under the pillion seat.
Connection – standard is M6 ring terminals to the battery. Optionally, the PowerLink upgrade can be selected which provides a high power connection point to the battery for connecting jump leads ( available separately ).

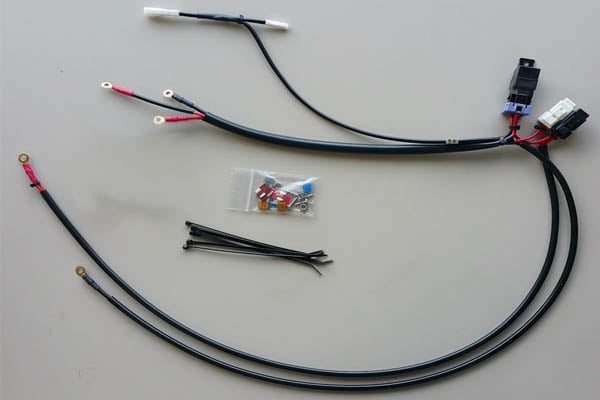

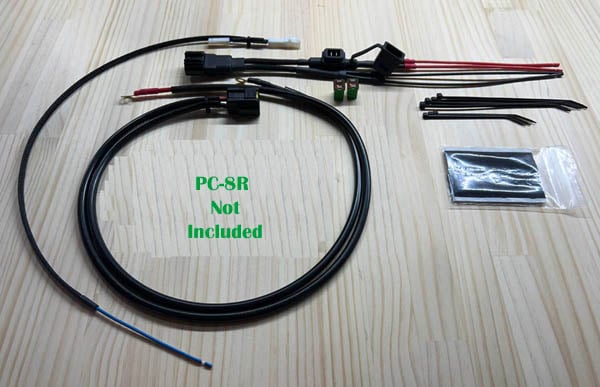

Size –  the kit is available as a 30A or 40A kit. The fuse box is the same, the wiring loom that connects to the fuse box is upgraded on the 40A kit. The 30A kit is fine for most riders, but for heavy accessory users, we recommend the 40A kit.

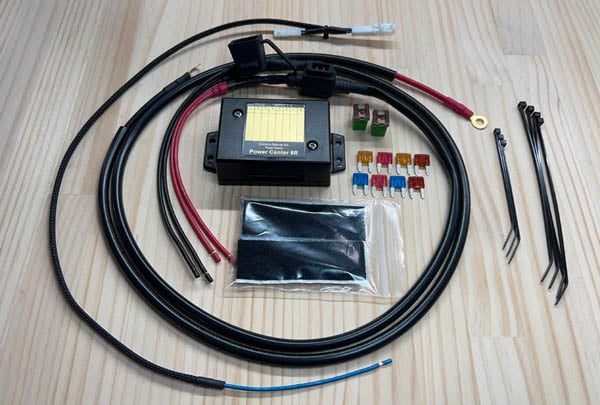

The PC-8R is the 2nd generation PC-8 fuse box from Eastern Beaver. It builds on the solid reliability of the PC-8. The relay is now on-board the fuse box ( not external ) and there is now built in noise suppression for use on Canbus bikes.

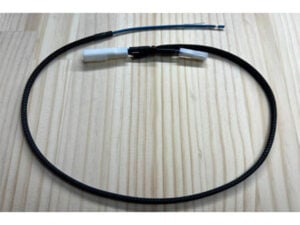

This Kit is custom made for the new Africa Twin and is plug and play. Everything you need is included. Just strip your circuit wires and insert into the PC-8 outputs and tighten the screws. Both power and ground terminal blocks are built in. Please Note – the switching input lead uses the plate light connector at the rear right of the bike ( under the seat ).

To install this Kit you need to remove the left side tank side trim, and pull the battery out half way. Wires are easy to route to the battery and when you’re finished, everything will look built into the bike. You should be able to locate the PC-8R just about anywhere under the seat. Install the main fuses after complete installation.
