Description

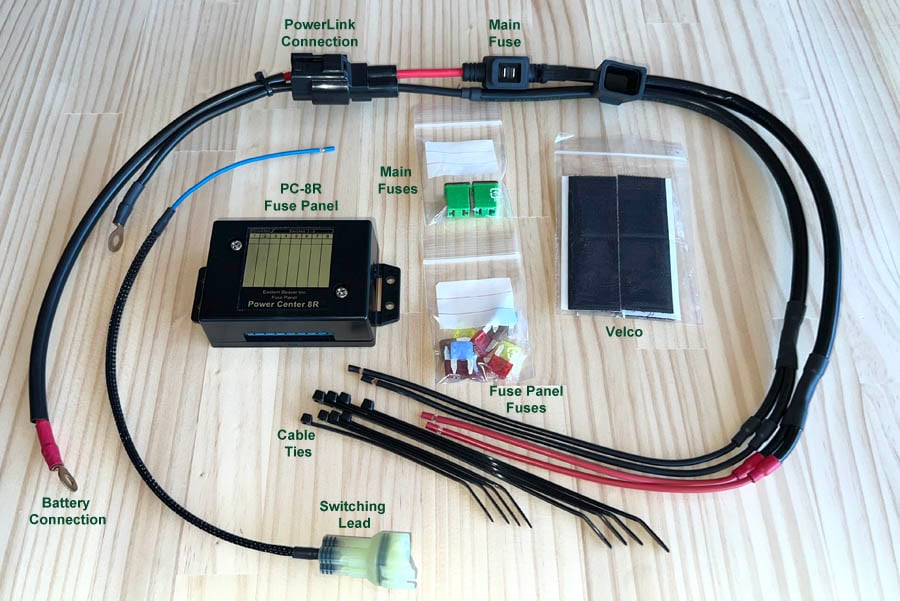

Plug and play accessory fuse box for the Honda ST1300. Provides 6 switched and 2 direct power connections. Uses the diagnostic port ( 4 pIn )
for switched input ( only draws 0.065A and does not make any problem for ECU ). This kit was designed on the 2008 ST1300 but will work on any ST1300 with the 4 pin diagnostic port ( right rear under the pillion seat ). Both connection types are 40Amp kits.

• PC-8R Specifications and Features:
• – 4 threaded insert nuts provide case mounting and fuse panel installation mounting points
• – comes with an assortment of ATM fuses, one for each output circuit and a few extras
• – 8 hot + outputs (2 un-switched circuits, 6 switched circuits)
• – Switched circuits are turned off when the bike is shut down. An un-switched circuit is always hot – can be used for charging the battery
• – 8 ground outputs – much better to ground your auxiliary circuits here than on a bike’s frame
• – maximum fuse panel capacity 40 Amps (combination of these limits 30A/20A – switched/un-switched)
• – maximum circuit capacity 15 Amps
• – maximum output wire size 12 AWG (3 sqmm)
• – LP Jcase main fuse & spare, included in the kit.
• – all hardware is stainless steel (except input posts which are tin plated steel)
• – black satin polycarbonate cover makes unit splash-proof yet allows it to breathe and stay cool
• – cover mounting tabs on each end can be broken off or left on, depending on mounting choice
• – simple robust design means no overheating and no problems with vibration.
