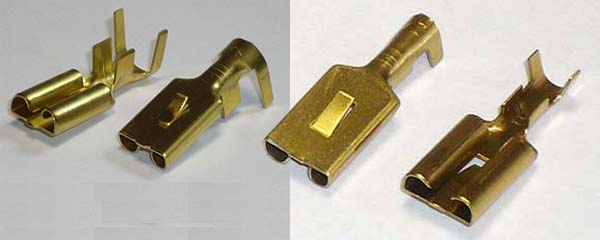

Terminal 305 Female Brass
Price range: $0.34 through $0.35
Description
Terminal 0.305″ ( 7.8mm ) . For higher current applications ( 42A max ).

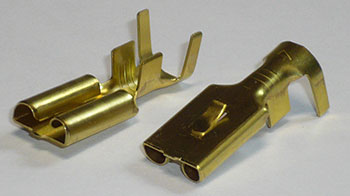

Large – 3 – 5 sq mm² (12-10 AWG)
Small – Fits wires from .8 – 2mm² (18 – 14 AWG).
Terminals rated at 42A
Electrical Resistance: 3milli ohm Max.(Initial)
Insulation Resistance: 250Megohm Min.(at 500VDC)
Withstand Voltage: 1000V AC (1min.)
Additional information
| Size | Large, Small |
|---|
