Terminals 62-Z 060
Price range: $0.16 through $0.34
7116-1305, 7114-1305
Description

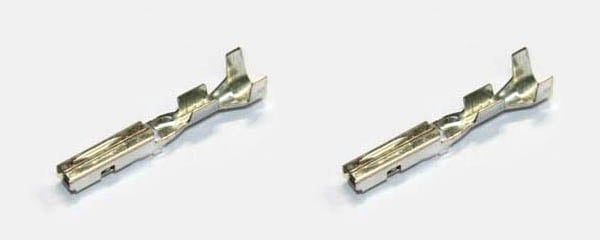

Yazaki 62 Z Type Terminals

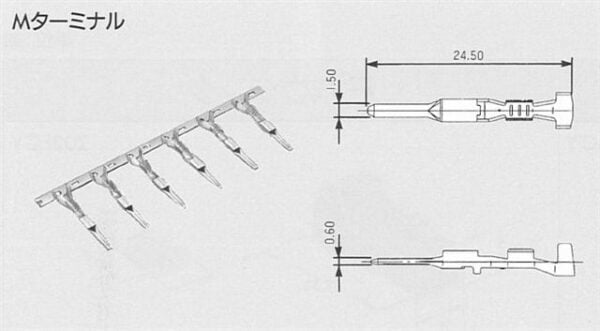

Male Terminal 7114-1305

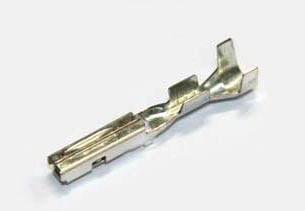

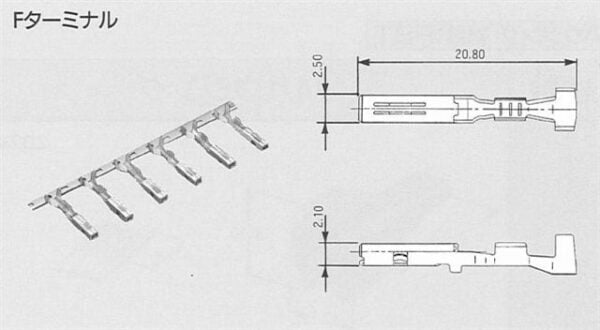

Female Terminal 7116-1305
Fits wires from .5mm – .85mm (22 – 18 AWG).
Retainers lock terminals in place.
Terminals rated at 6A
Electrical Resistance: 5milli ohm Max.(Initial)
Insulation Resistance: 250Megohm Min.(at 500VDC)
Withstand Voltage: 1000V AC (1min.)
Reference Numbers:

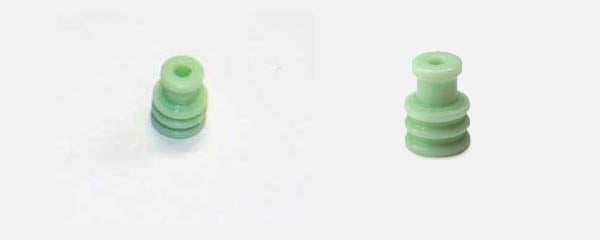

Seal 7157–3791–60
Additional information
| TYPE | Female, Male, Set |
|---|
