Dual USB Port ‘Type A’ – [Slim]

Price range: $42.95 through $44.95

Slim -13.5mm Wide. 4.8A Capacity

x
SKU: aa-aa-usb-slim-a Categories: , , Tags: , , , , ,

Description

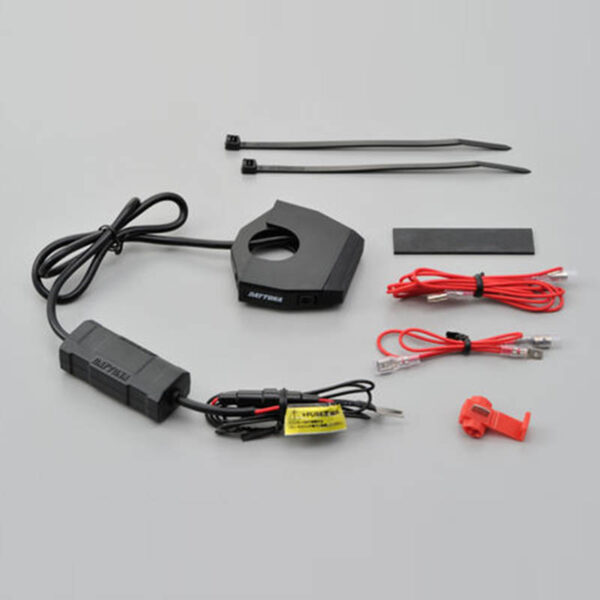

USB power socket with two ports and a slim size with a thickness of 13.5 mm and a clean appearance.

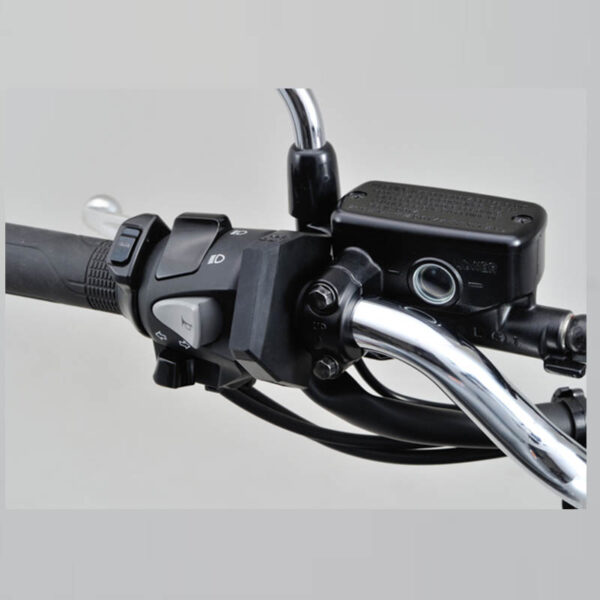

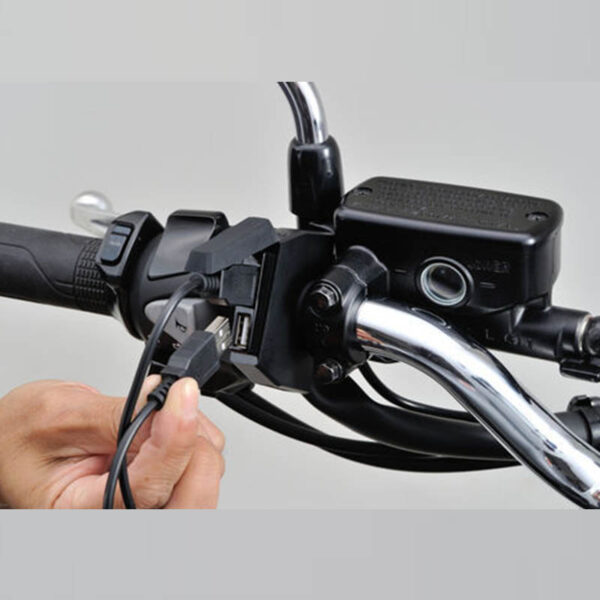

Handle clamps are compatible with 22.2 and 25.4 mm and can be mounted on a wide range of vehicles.

USB 2 port (MAX 5V4.8A)
Input voltage: DC12V
Input voltage range: DC10V-16V
Stand-by current (when not used): 6 mA
Output voltage: 5.0 V
Output rated current: 2.4A (1 port)
Output rated efficiency: 12W (1 port) / 24W (2 ports total)

Installation PDF

Additional information

Power Connection Type

1/2/4 CS Connect ( 2P MT090 Male ), 3CS Connect ( 2P 250 Tangless Male ), Battery M6 Ring Terminals, PC-8 Connect – tinned wires, Positap connect ( 2 positaps )
