Description

Himalayan 450 4CS Accessory Fuse Box. Plug and play kit that provides 3 switched and one battery direct output. Sealed against water, dust and the weather. Assembled from quality Japanese components. Alleviates the mess people end up with at the battery terminals and provides for easy connection of accessories. Switched outputs, protect against battery drain, when the bike is off. The battery connect connection can be used for plug in heated gear, or a battery tender. This is a compact kit designed to fit under the seat without the need to move anything. No modifying you bike and you can remove and sell it when you decide to upgrade to the next model. Designed to last.

This kit is rated at 35A total ( switched and un-switched ).

1. Maximum 20A on the 3 switched outputs ( more than enough considering the bikes charging system ability ).
2. Maximum 15A on the 1 un-switched output.
3. Sleek design to make installation easy
4. Waterproof & weatherproof
5. Plug and play – no modifying existing wiring
6. Each fuse holder also carries a spare fuse
7. Hand made in Japan

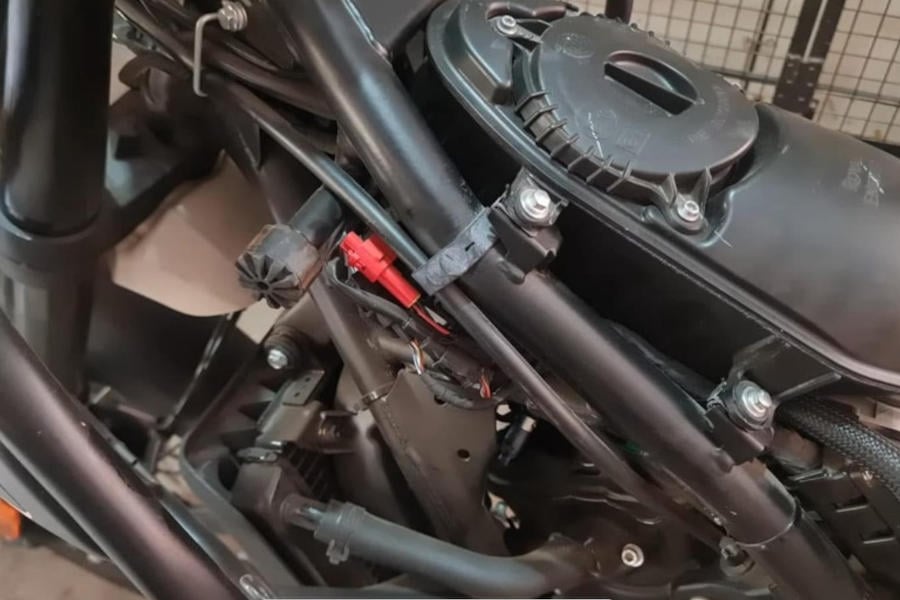

Installation is simple. Connect to the battery ( do not install fuses until all connections are made ). Ensure positive and negative connection are correct. Always disconnect negative terminals first when disconnecting and last when connecting. Remove or lift the tank at the rear. Seek the red accessory connector on the left side of the frame. Remove the cap and plug in the switching lead. Re-assemble the bike and install the fuses and you are done.
