Suzuki V-Strom 4 CS Kit – [DL1000 -13 & DL650 -16]
Price range: $69.95 through $89.95
Description
This V-Strom version of my 4CS-Sealed comes with my V-Strom Rear Brake light Connector Relay Switching Adapter, no need to tap any wires on the bike. Plug and play so easy installation. The brake light connection is usually found by removing the seat and its just under the rear of the seat, usually to the right side.

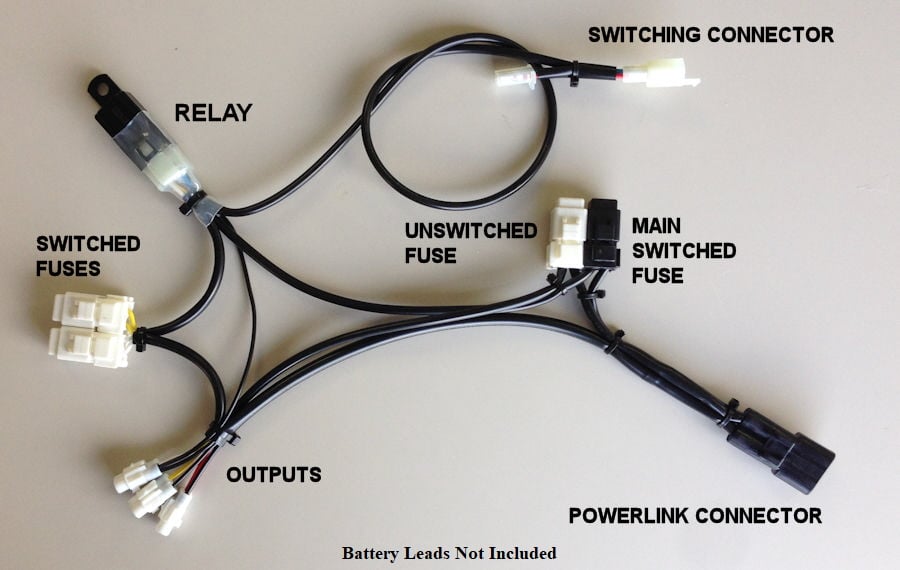

This Kit is like a small fuse panel that doesn’t take up much space. These Kits gives you 4 fused circuits, 3 switched and 1 unswitched. The components just tuck into unused spaces around the battery. These Kits can use modular sealed components like leads, splitters and more, see here.
Additional information
| CONNECTIONS | M6 Ring Terminals for Battery Connection, PowerLink Connector to Battery PowerLink Cable |
|---|
